Particle size monitoring and analysis.
It is a system based on artificial vision and LiDAR that measures the particle size distribution on conveyor belts and is applicable to crushing and grinding circuits.
What information does it provide:
System modules
System Components
System architecture
F80 Meter uses a camera for rock segmentation, a camera for volumetry and industrial lighting installed in the upper part of the strip to acquire the images with the best possible resolution.
These images are sent to the processing panel where they are processed and analyzed, later they are sent to the DCS through the industrial communication Ethernet IP, Profibus DP, Modbus TCP / IP. The advanced display module links to the processing module via Ethernet IP.

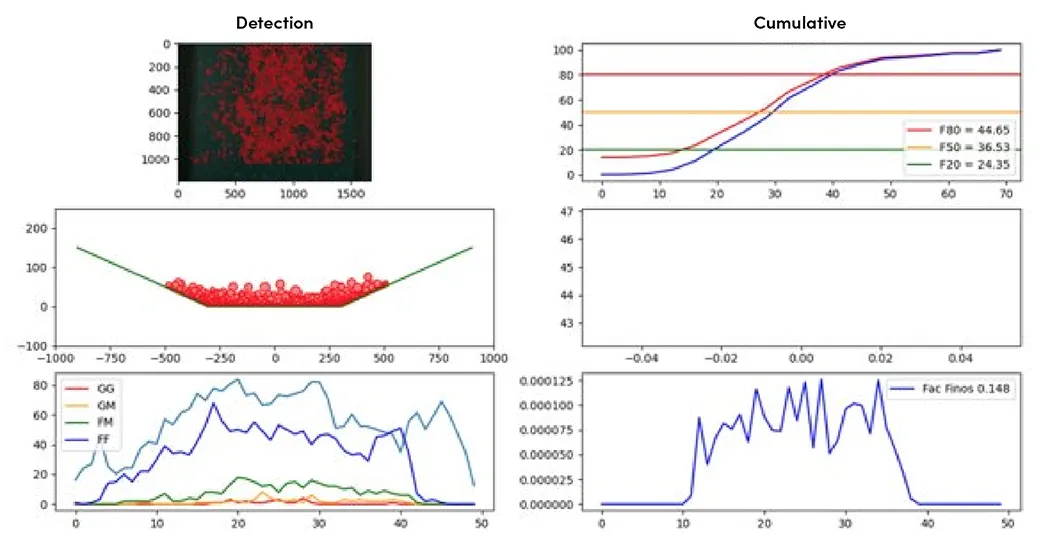

System Benefits
